Complex swing jaw crusher

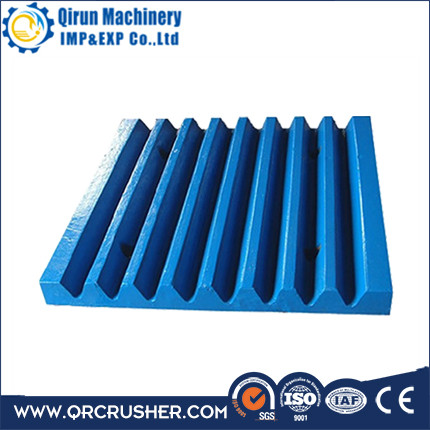

The top of the movable arm 1 of the machine is directly hung on the eccentric shaft 3, and the bottom of the movable plate 1 is supported on the thrust plate 4 which is fixedly hinged at one end. When the eccentric shaft rotates, the moving track is directly driven, the moving track at the upper part of the movable plate is approximately circular, the bottom is constrained by the thrust plate, the motion track is circular arc, and the middle part is oval. The upper horizontal stroke of the complicated swing type crushing motor is 1. 5 times lower than that of the lower part, and is suitable for the upper crushing massive ore. The upper part of the vertical displacement is 2.5s and the lower part is 3s. In the crushing cavity, the ore is subjected to the extrusion and bending action of the corrugated plate, and the grinding and kneading action is also carried out.



The complex swing jaw crusher is generally made of small size and the crushing ratio can reach 10. With the development of industry, the complex swing jaw crusher has been developed to a large scale.

                   [Click to view jaw crusher parts introduction](/products/Jaw_Crusher_Parts/)

Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd, specializing in the production of domestic and foreign brands of crusher wear spare parts manufacturers, production of domestic brands, Hua Yang, Shan Bao, SBM brands such as crusher wear parts, spare parts, as well as foreign brands, common, Sandvik, TEREX and other import brands crusher spare parts, wear parts, mining quarry companies such as crusher wear parts of choice. We achieve cost-effective localization of imported spare parts, service users at home and abroad. The company can be matched with various brands of hydraulic crusher electric parts, sealing parts, standard parts and other accessories, can meet the needs of one-stop shopping for customers at home and abroad the demand.

Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd has thirty years of production experience, and years of experience in processing export products, products have been exported to the United States, Canada, Australia, Sweden, Finland, Russia, Ukraine and Southeast Asia and other countries and regions. Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd product using the original material, high-quality raw materials, casting and heat treatment process we have a unique thirty years production experience, to ensure complete interchangeability, and original spare parts with high quality and competitive price, provide quality products, quality services for the majority of users.

Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd wearable parts can be customized to map, and if there is no map, the company has professional mapping personnel to help you mapping, after customization
