Working principle of CH870 cone crusher

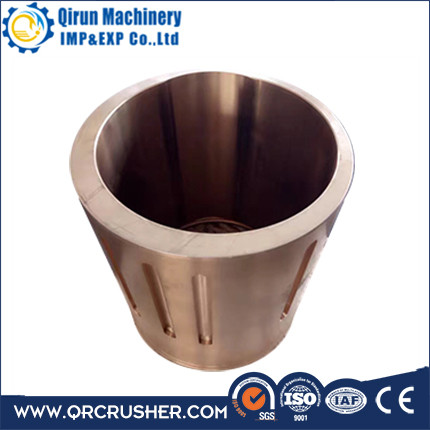

The main working parts of hydraulic cone crusher are movable cone and fixed cone. The cavity formed between them is called broken cavity. The lower end is inserted in the eccentric sleeve, the whole moving cone is supported on the upper part of the hydraulic cylinder, the upper part of the cylinder has three friction discs, the upper disk is fixed at the lower end of the spindle, the lower disk is fixed on the piston, and the upper surface of the middle disk is spherical. The lower surface is flat. When the crusher works, the middle disk slips relative to the upper disk and the lower disk.

The main motor transfers power to the horizontal axis through the V-belt. The pinion gears at the horizontal shaft end are meshed with the big bevel gears installed at the lower end of the eccentric sleeve, which drives the eccentric sleeve to rotate. The spindle and the moving cone move around the center line of the crusher under the drive of the eccentric axle sleeve. For a fixed cone (upper frame), the moving cone always approaches or is far away periodically. When the moving cone approaches, The ore in the crushing chamber is crushed by compression or bending; when the moving cone is far away, the broken ore is discharged by its own gravity.

The hydraulic cone uses the hydraulic lifting system to control the lifting of the moving cone, thus adjusts the size of the discharge opening, uses the D-V valve insurance system to quickly discharge hydraulic oil from the hydraulic cylinder, thereby increases the discharge opening and protects the crusher from loading. After unloading, the D-V valve reset and PLC system automatically open the hydraulic pump to the hydraulic cylinder arch oil, so that the dynamic cone reset.

Hunan Fengwei Wear Parts Foundry, specializing in the production of domestic and foreign brands of crusher wear spare parts manufacturers, production of domestic brands, Hua Yang, Shan Bao, SBM brands such as crusher wear parts, spare parts, as well as foreign brands, common, Sandvik, TEREX and other import brands crusher spare parts, wear parts, mining quarry companies such as crusher wear parts of choice. We achieve cost-effective localization of imported spare parts, service users at home and abroad. The company can be matched with various brands of hydraulic crusher electric parts, sealing parts, standard parts and other accessories, can meet the needs of one-stop shopping for customers at home and abroad the demand.

                     Click to view cone crusher parts introduction

Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd, specializing in the production of domestic and foreign brands of crusher wear spare parts manufacturers, production of domestic brands, Hua Yang, Shan Bao, SBM brands such as crusher wear parts, spare parts, as well as foreign brands, common, Sandvik, TEREX and other import brands crusher spare parts, wear parts, mining quarry companies such as crusher wear parts of choice. We achieve cost-effective localization of imported spare parts, service users at home and abroad. The company can be matched with various brands of hydraulic crusher electric parts, sealing parts, standard parts and other accessories, can meet the needs of one-stop shopping for customers at home and abroad the demand.



Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd has thirty years of production experience, and years of experience in processing export products, products have been exported to the United States, Canada, Australia, Sweden, Finland, Russia, Ukraine and Southeast Asia and other countries and regions. Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd product using the original material, high-quality raw materials, casting and heat treatment process we have a unique thirty years production experience, to ensure complete interchangeability, and original spare parts with high quality and competitive price, provide quality products, quality services for the majority of users.



Shuangfeng Qirun Machinery Parts IMP&EXP Co.,Ltd wearable parts can be customized to map, and if there is no map, the company has professional mapping personnel to help you mapping, after customization
