We can manufacture all kinds of wear parts of crusher according to customers requirements and drawings. If you are interested in our products and want to know information from us please feel free to c
| Part Type | Ball Rod Mill Liner |
| Lead Time | 15-30 days (standard, MTR included) |
| MOQ | 1 piece (trial order accepted) |
We can manufacture all kinds of wear parts of crusher according to customers’ requirements and drawings. If you are interested in our products and want to know information from us please feel free to contact us

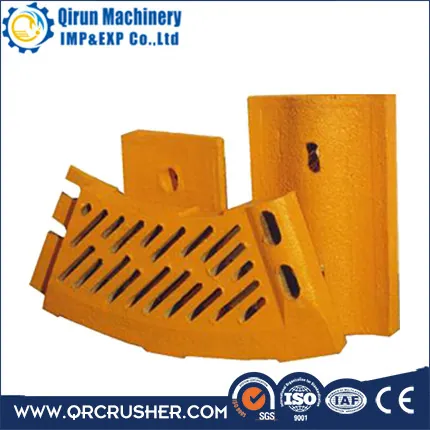

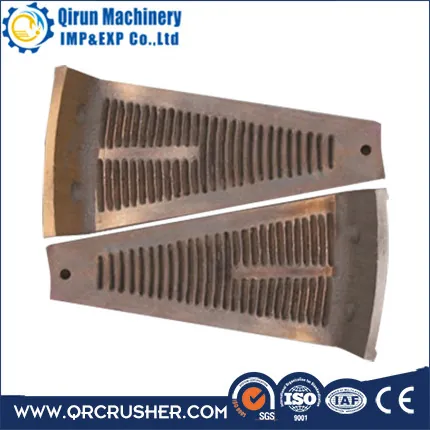

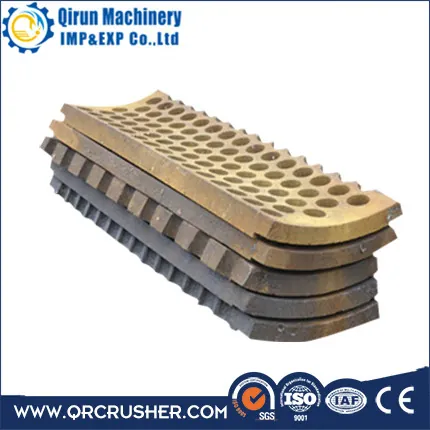

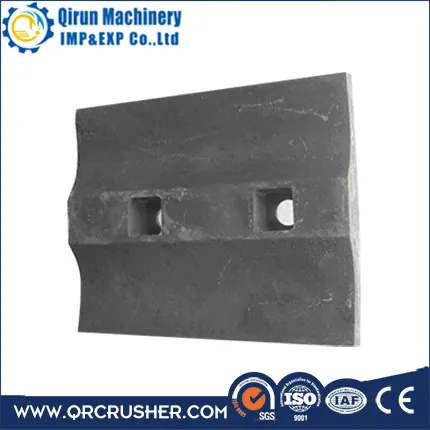

The main function of ball mill liner is to protect the ball mill main partsfree from abrasion, the most important requirement for the material is the feature of good wear-resistance and high toughness. The
material high manganese steel with enough toughness, and it will become cold-hardening with some extent impact,that will make the material better on hardness and wear-resistance, so it is used as the
widely used material for liners.
High Manganess Casting Material Chemical Composition
Code Elem.
C
Mn
Si
Cr
Mo
P
S
ZGMn13-1
1.0-1.45
11.0-14.0
0.30-1.0
≤0.09
≤0.04
ZGMn13-2
0.90-1.35
11.0-14.0
0.30-1.0
≤0.09
≤0.04
ZGMn13-3
0.9-1.35
11.0-14.0
0.30-0.8
≤0.09
≤0.04
ZGMn13-4
0.9-1.30
11.0-14.0
0.30-0.8
1.50-2.0
≤0.09
≤0.04
ZGMn13-5
0.75-1.30
11.0-14.0
0.30-1.0
0.90-1.2
≤0.09
≤0.04
Trusted by customers in 30+ countries. Standard lead time 15-30 days.
High manganese steel Mn13, Mn13Cr2, Mn18Cr2 and Mn22Cr2, plus high chrome iron (Cr26) for fine crushing. We select the material based on your abrasive and impact conditions - send your working conditions for a recommendation.
Aftermarket parts fit Metso (HP, GP, C, NP series), Sandvik (CH, CS, H, S series), Symons 2FT-7FT, Terex Pegson, Kleemann, McCloskey, Shanbao, SBM, Telsmith, Minyu, Hazemag and more. Any model can be custom made by drawing or sample.
Yes. Send a drawing (PDF, DWG or CAD) or a used sample. We measure, draft and confirm all dimensions with you before production. OEM part numbers are welcome for reference.
Standard lead time is 15-30 days and samples ship in 7-15 days. MOQ is flexible - trial orders from 1 piece are accepted.
ISO 9001 certified factory (Kaixin Certification, CNAS-accredited; certificate valid through June 2028). Every shipment includes a Material Test Report (MTR) with chemical composition and mechanical properties.
Export-standard wooden crates with rust protection. Sea and air freight from Shanghai and Ningbo ports to worldwide destinations.
| Material | Initial Hardness | Best For |
|---|---|---|
| Mn13 (ASTM A128) | HB 200-230 | General crushing with medium impact |
| Mn13Cr2 | HB 210-240 | Standard jaw plates and cone liners |
| Mn18Cr2 | HB 220-250 | High-impact, abrasive feed |
| Mn22Cr2 | HB 230-260 | Severe impact, hard and large rock |
| High Chrome Cr26 | HRC 58-62 | Blow bars, fine crushing of abrasive material |
* High manganese steel work-hardens under impact to 500+ HB at the wearing surface, giving long life in hard-rock crushing.
Send us your crusher model, quantity or part number.
