Specifications of jaw crusher parts 1. High manganese steel castings (crusher part) 2. Durabale Performance 3. jaw plate,movable jaw plate,fixed jaw plate, toogle jaw plate wedge plate 4. Aftermarket availabl
| Part Type | Jaw Crusher Parts |
| Lead Time | 15-30 days (standard, MTR included) |
| MOQ | 1 piece (trial order accepted) |
Specifications of jaw crusher parts
High manganese steel castings (crusher part)
Durabale Performance

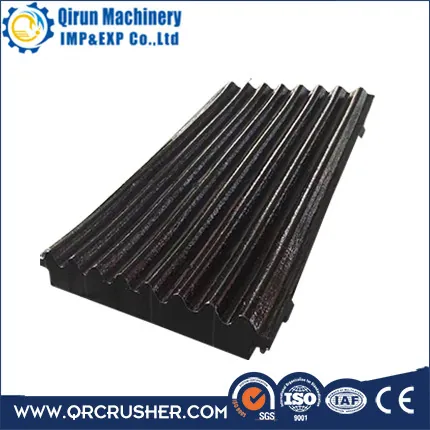

jaw plate,movable jaw plate,fixed jaw plate, toogle jaw plate wedge plate
Aftermarket available
Applications of jaw crusher parts
Widely used for crushing ores and rocks with particle, and is applied in water conservation, building highways, chemical industry, coal.
Material:
1).High Manganese Casting:
Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi…
2).High Chrome Steel:
Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
Cr25Mo0.5Ni0.5…
3).Any other material as customer’s requirement.
Chemical Component:
Material
C
Mn
Cr
Si
Mo
Ni
Cu
Mn13Cr2
1.0~1.4
12~15
1.7~2.2
0.3~1.0
Mn18Cr2
1.0~1.4
17~19
1.8~2.2
0.3~1.0
Cr12
2.0~3.3
≤2.0
11~14
≤1.2
≤3.0
≤2.5
≤1.2
Cr15
2.0~3.3
≤2.0
11~14
≤1.2
≤3.0
≤2.5
≤1.2
Cr20
2.0~3.3
≤2.0
14~18
≤1.2
≤3.0
≤2.5
≤1.2
Cr26
2.0~3.3
≤2.0
23~30
≤1.2
≤3.0
≤2.5
≤2.0
Our advatages
1.Abundant technology, advanced production, sophisticated processing equipment and completed inspection facility
Every process being controlled and every machine and spare parts being inspected.
We will provide with one-stop services, real-time tracking and co-operation you.
Factory direct supply,Very competitive price
Our quality crusher spares and wear parts are available for the following manufacturer
Trusted by customers in 30+ countries. Standard lead time 15-30 days.
High manganese steel Mn13, Mn13Cr2, Mn18Cr2 and Mn22Cr2, plus high chrome iron (Cr26) for fine crushing. We select the material based on your abrasive and impact conditions - send your working conditions for a recommendation.
Aftermarket parts fit Metso (HP, GP, C, NP series), Sandvik (CH, CS, H, S series), Symons 2FT-7FT, Terex Pegson, Kleemann, McCloskey, Shanbao, SBM, Telsmith, Minyu, Hazemag and more. Any model can be custom made by drawing or sample.
Yes. Send a drawing (PDF, DWG or CAD) or a used sample. We measure, draft and confirm all dimensions with you before production. OEM part numbers are welcome for reference.
Standard lead time is 15-30 days and samples ship in 7-15 days. MOQ is flexible - trial orders from 1 piece are accepted.
ISO 9001 certified factory (Kaixin Certification, CNAS-accredited; certificate valid through June 2028). Every shipment includes a Material Test Report (MTR) with chemical composition and mechanical properties.
Export-standard wooden crates with rust protection. Sea and air freight from Shanghai and Ningbo ports to worldwide destinations.
| Material | Initial Hardness | Best For |
|---|---|---|
| Mn13 (ASTM A128) | HB 200-230 | General crushing with medium impact |
| Mn13Cr2 | HB 210-240 | Standard jaw plates and cone liners |
| Mn18Cr2 | HB 220-250 | High-impact, abrasive feed |
| Mn22Cr2 | HB 230-260 | Severe impact, hard and large rock |
| High Chrome Cr26 | HRC 58-62 | Blow bars, fine crushing of abrasive material |
* High manganese steel work-hardens under impact to 500+ HB at the wearing surface, giving long life in hard-rock crushing.
