Symons Cone Crusher Parts

Symons Cone Crushers are the earliest cone crusher in the world with over 50 years. 40 years ago, China manufacturer imported the whole produce line and drawings to learn and improve the technology. FW FOUNDRY,one of the importer,started to cast symons cone crusher parts at that time. We use the EPC and sandmaking to product them with standard material(Mn18Cr2). Our products are widely use in the market of China, European and others. Rich experience and good technology bring perfect symons cone crusher parts to customers!

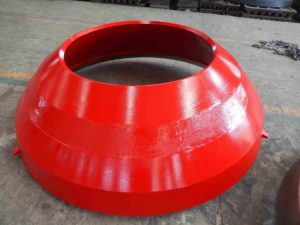

7′ Symons Bowl Liner PN 4830-8400

7′ Symons Mantle PN 5013-9268

FW FOUNDRY For Symons Cone Crusher :

2FT • 3FT • 4FT • 4800™ • 4¼ FT • 5½ FT • 7FT

STANDARD & SHORTHEAD



Download:

[Symons cone crusher part pattern list](/cp/2016/08/Symons-cone-crusher-parts-pattern-list.xls)

Symons Cone [Crusher Parts](/) Part Numbers:

OEM

FT

STD/SH

Description

weight(lbs)

5013-1001

 2ft

standard

2′ std mantle

238

4829-3541

2 ft

standard

2′ std bowl liner

214

4829-1921

2 ft

standard

2′ SD bowl liner

234

4829-6576

3 ft

standard

3′ STD bowl liner

931

4829-7591

3 ft

short head

3′ SH bowl liner

824

5013-3401

3 ft

short head

3′ SH mantle

697

5013-2201

3 ft

standard

3′ STD mantle

628

4829-6511

3 ft

standard

3′ STD bowl liner

725

5013-3801

3 ft

short head

3′ SH mantle

589

4829-5161

3 ft

short head

3′ SH bowl liner

617

5013-2401

3 ft

standard

3′ STD mantle

721

7320-3201

3 ft

standard

3′ std main shaft sleeve

33



3 ft

short head

3′ SH head





3 ft

short head

3′ SH bowl



4829-5026

3 ft

standard

3′ std “G” (furo) bowl liner

290

4829-5161

3 ft



3 TC “M” bowl liner

300

4829-4611

3 ft



 3′ TC “M” mantle





3 ft

standard

3′ std. “EG” mantle

330

6391-4652

300HP



300HP torhc ring

13

6391-5531

36′ Gyradisc



36′ Gyradisc t ring

11

4829-4700

36′ Gyradisc



36′ gyradisc upper liner

606

4829-4710

36′ Gyradisc



36′ gyradisc upper liner

522

5013-9901

36′ Gyradisc



36′ gyradisc lower liner

447

5013-9880

36′ Gyradisc



36′ gyradisc lower liner ext

187

6391-5531

36′ Gyradisc



36′ gyradisc t ring

11

5013-2501

3ft

standard

3′ STD mantle

610

5013-5201

4 1/4 ft

short head

4 1/4 SH mantle

1,698

4830-1350

4 1/4 ft

short head

4 1/4′ SH bowl liner

1,643

4830-1500

4 1/4 ft

short head

4 1/4 SH bowl liner

1,764

4829-9481

4 1/4 ft

short head

4 1/4 SH bowl liner

1,766

4829-8603

4 1/4 ft

short head

4 1/4 SH bowl liner

1,402

5013-6001

4 1/4 ft

standard

4 1/4′ STD mantle

1,879

5013-6001

4 1/4 ft

standard

4 1/4′ STD mantle no pour

1,847

4830-4341

4 1/4 ft

standard

4 1/4′ STD bowl liner

1,795

4830-4071

4 1/4 ft

standard

4 1/4′ STD bowl liner

1,795

5013-5401-IF

4 1/4 ft

short head

4 1/4′ SH mantle

1,588

5013-4801-IF

4 1/4 ft

short head

4 1/4 SH mantle

1,177

4830-4881

4 1/4 ft

standard

4 1/4 STD bowl liner

2,022

5013-6001-I.F.

4 1/4 ft

standard

4 1/4′ STD mantle with I.F.

1,850

4830-1826

4 1/4 ft

standard

4 1/4′ STD bowl liner

1,992

6391-3321

4 1/4 ft

standard

4 1/4′ STD t ring

11

4827-6435

4 1/4 ft

standard

4 1/4′ std socket liner, bronze

152

4830-4612

4 1/4 ft

standard

4 1/4′ std bowl liner F

1,929

4830-1288

4 1/4 ft

short head

4 1/4′ SH bowl liner

1,680

5013-5401

4 1/4 ft

short head

4 1/4 SH mantle

1,610

2747-8876

4 1/4 ft

short head

4 1/4 SH locking nut cover

163

6273-4486

4 1/4 ft

short head

4 1/4 SH locking nut

185

7320-4331

4 1/4 ft

standard

4 & 4 1/4 STD main shaft sleeve

123

4830-2800

4 1/4 ft

standard

4 1/4′ STD bowl liner

2,322



4 1/4 ft

short head

4 1/4 SH mantle

1,596

4830-0158

4 1/4 ft

short head

4 1/4′ SH  bowl liner

1,521

5013-4726

4 1/4 ft

short head

4 1/4 SH mantle

1,444

5013-4451

4 1/4 ft

standard

4 1/4′ STD mantle

1,671

4830-2958

4 1/4 ft

standard

4 1/4′ std bowl liner



4830-2957

4 1/4 ft

standard

4 1/4′ std mantle

1942

4830-4699

4 1/4 ft

standard

4 1/4′ STD b liner

2410



4 1/4 ft

short head

4 1/4′ SH bowl





4 1/4 ft

short head

4 1/4′ SH head



3806-4092

4 1/4 ft



4 1/4 arm guard



4831-5109

4 ft

standard

omni 1560 mod bowl liner

3,749

4830-1151

4 ft

standard

4′ STD bowl liner

1,738

5013-4101

4 ft

standard

4′ STD mantle

1,233

4830-0023

4 ft

short head

4′ SH bowl liner (special medium)

1,411

4830-1101

4 ft

standard

4′ STD bowl liner

1905

4830-0291

4 ft

standard

4′ std bowl liner

1644

4830-0350

4 ft

standard

4′ STD bowl liner

1657

5013-4201

4 ft

standard

4′ STD mantle

1520

6391-5702

48′ Gyradisc



48′ Gyradisc t-ring

22

4829-8494

48′ Gyradisc



48′ Gyradisc upper liner

913

5014-6050

48′ Gyradisc



48′ gyradisx lower liner

725

5014-0010

48′ Gyradisc



48′ gyradisc L/liner EXT

463

4829-8505

48′ Gyradisc
